Infrastructure

  • Home
  • Infrastructure
Our

Machining Facilities

CNC lathes

CNC Lathes

  • Make by: ACE
  • Controller: Fanuc
  • Nos. - 14
Swing Over Dia: 640mm Max
Turning Dia: 58Omm Ma
Turning Length : 500mm Max

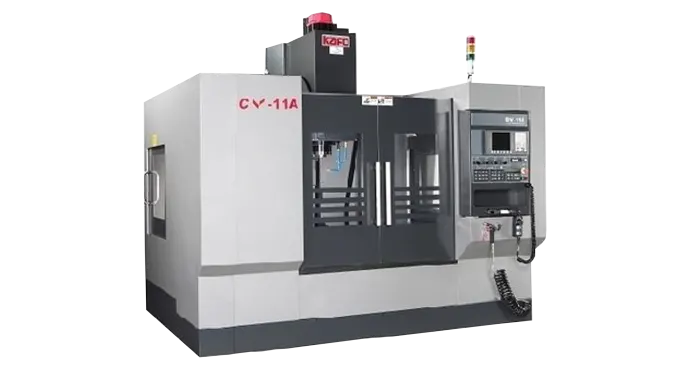

KAFO vertical machining center

Vertical Machine Centers

  • Make by: LMW
  • Controller: Fanuc
  • Nos. - 3
X AXIS: 1050 mm
Y AXIS: 540 mm
Z AXIS: 600 mm

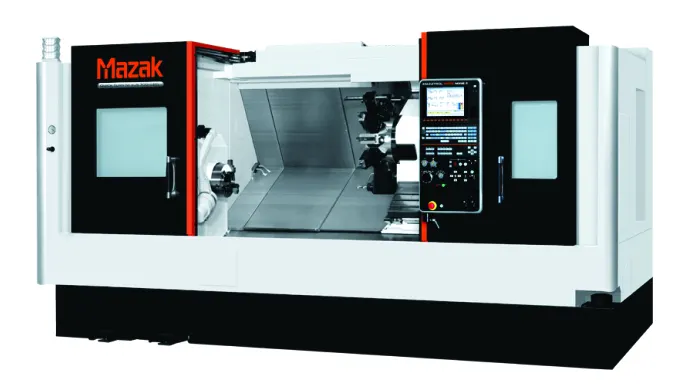

Mazak turn mill

Mazak Turn Mill

  • Make by: MAZAK QTS 200M
  • Controller: Mazatrol
  • Nos. - 1
Swing Over Dia: 600mm Max
Turning Dia: 450mm Max, Turning Length : 700mm Max
C AXIS Min Increment: 0.001°
Vertical turning lathe

Vertical Turning Lathes

  • Make by: ACE
  • Controller: Fanuc
  • Nos. - 1
Swing Over Dia: 450mm Max
Turning Dia: 300mm Max
Turning Length : 550mm Max
Swiss type CNC automatic lathe

Swiss Type CNC Automatic Lathe

  • Make by: Tsugami
  • Controller: Fanuc
  • Nos. - 2
6th Axis Machine
MAXIMUM WORKPIECE 32MM
Main & sub Spindle-3600C
Barfeeder- ALPSTOOL

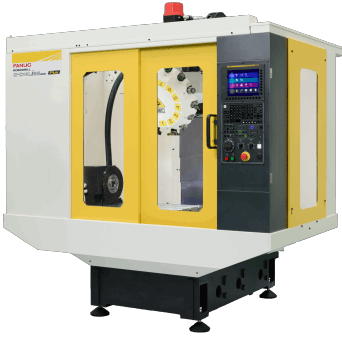

Robodrill machining center

Robodrill

  • Make by: Fanuc
  • Controller: Fanuc
  • Nos. - 5
X Axis: 600mm Max
X Axis: 400mm Max
Z Axis: 450mm Max
Forth axis rotatory table Dia: 300 mm
Mex Precitech LLP

Working Materials

ASTM(A48) DIN(1691)
CI
Casting		 GI (20/25) GG15
GI (30) GG20
SGI
Casting		 ASTM(A395) DIN(1693)
SGI GG40
(60-40-18)
AISI DIN
Carbon
Steel		 8620 1.6523
1018 1.0401
1010 1.1121
1020 1.0406/2
1040 1.1186
1045 1.1191
4140 1.722
EN1A, EN8D, EN9,
EN31, 430, 416
AISI DIN
Stainless
Steel		 SS202 1.4319
SS201 30201
SS303 1.4305
SS304 1.4301
SS304L 1.4306
SS316L 1.4404
SS316TL 1.4573
SS316 1.4401
SS321 1.4541
AISI DIN
Metal
Aluminum		 GR 6061 AL- mg1sic4
(HE-20)
GR 6082 AL- si1mg4
(HE-30
AA 2011 AL-cu6bipb
AISI DIN
Brass Parts (cu2n39pb3)
(cu2n40)
(c3600)
(cu2n38pbl)
(cu2n40pb3)
  • LDPE Low-Density Polyethlene
  • PVC Solid Food Grade
  • PTFE Teflon
Mex Precitech LLP

Measuring Facilities

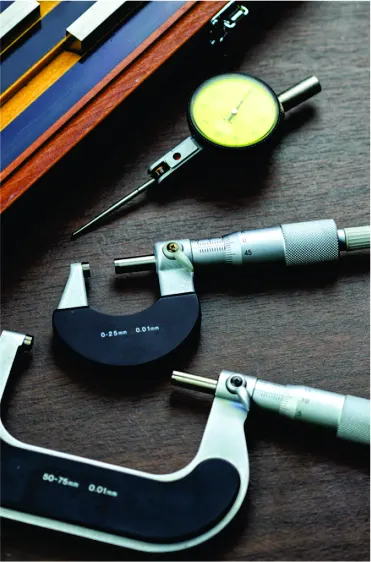

Measuring instruments
Quality Equipment’s
  • Vision Systems
  • CMM
  • Digital Micrometers
  • Circular Form Gauge
  • Concentricity Gauge
  • Micrometers
  • Hardness Teters
  • Profile Gauge
  • Optical Comparators
  • Air Gauge
  • Crack Detectorness

Quality Equipment’s

Gauges and inspection tools
2D Height Gauge
Make: Mahar
Measuring Range: 600mm
Expandable Range: 915mm
Squareness: 10 Micron

2D Height Gauge

Coordinate measuring machine
CMM
Make: Mitutoyo
Model: CRYSTA-Apex S7106
Size: 700(X) X 1000(Y) X 600(Z) mm
Resolution: 0.1 QM
Software: MCOSMOS Level 3

CMM

Surface roughness tester
Roughness Measuring
Make: Mahar
  • Digital Touch Display
  • Provide Accurately Ra Value
  • Adjustable With Height Gauge
  • Data Can Be Saved Or Printed After Use

Roughness Measuring
